I <3 Latex

Yeah I'm not saying I'm less than 3 Latex. Ha so funny.

Well, this is really cool isn't it?



It's not actually so bad to get started with latex to create these.



0 Prerequisites

Download TexShop from the official website (about 4.4 GB for Big Sur on 9 Dec of 2021).

1. Beamer template

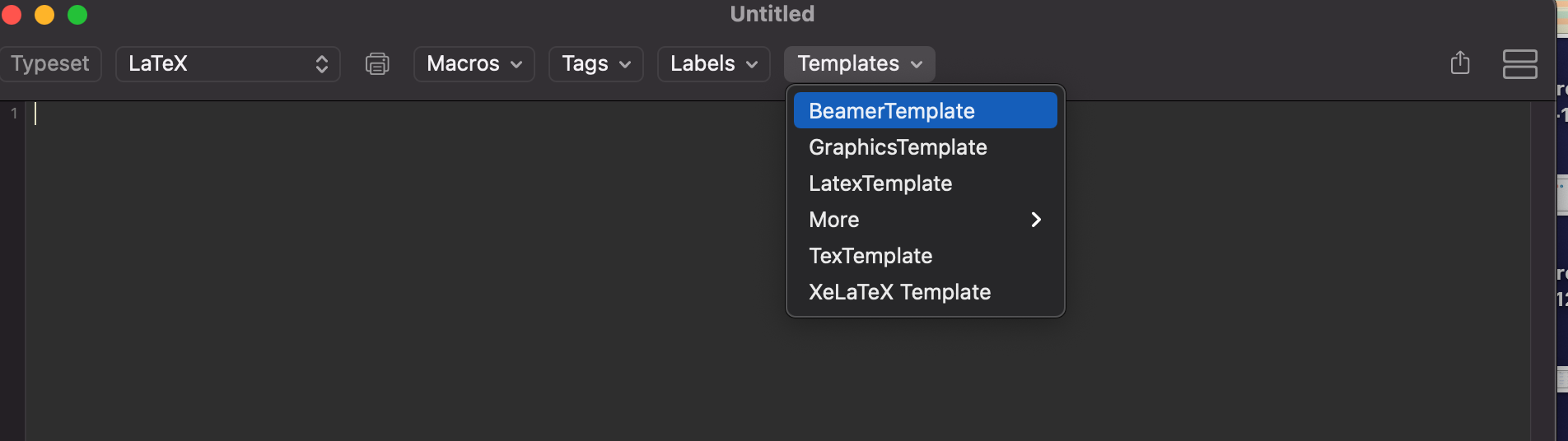

Firstly, make sure you read up on Beamer template (and in particular how each page in slide can be added - it's just \begin{frame} and \end{frame}).



Of course, know about how to make new line, how to itemise, how to nest-itemise. That's all you need to know actually.



Then, read up about lstlisting. Javascript doesn't have default support from lstlisting, which is why we have a huge boilerplate in the self-contained example below.



Further, if you are embedding a code snippet within a frame, you need to make sure you define frame like:

\begin{frame}[fragile]

...

\end{frame}



So, '[fragile]' is key. (this is basically because frame is static, wehreas lstlisting has to perform some styling to frame after compilation)

2. Here's a self-contained example

\documentclass[10pt]{beamer}
\usepackage{tikz}
\usepackage{listings}
\usepackage{color}
\usepackage{textcomp} % for upquote
\usetheme{Copenhagen}
\usecolortheme{default}
%
% ECMAScript 2015 (ES6) definition by Gary Hammock
%

\lstdefinelanguage[ECMAScript2015]{JavaScript}[]{JavaScript}{
  morekeywords=[1]{await, async, case, catch, class, const, default, do,
    enum, export, extends, finally, from, implements, import, instanceof,
    let, static, super, switch, throw, try},
  morestring=[b]` % Interpolation strings.
}


%
% JavaScript version 1.1 by Gary Hammock
%
% Reference:
%   B. Eich and C. Rand Mckinney, "JavaScript Language Specification
%     (Preliminary Draft)", JavaScript 1.1.  1996-11-18.  [Online]
%     http://hepunx.rl.ac.uk/~adye/jsspec11/titlepg2.htm
%

\lstdefinelanguage{JavaScript}{
  morekeywords=[1]{break, continue, delete, else, for, function, if, in,
    new, return, this, typeof, var, void, while, with},
  % Literals, primitive types, and reference types.
  morekeywords=[2]{false, null, true, boolean, number, undefined,
    Array, Boolean, Date, Math, Number, String, Object},
  % Built-ins.
  morekeywords=[3]{eval, parseInt, parseFloat, escape, unescape},
  sensitive,
  morecomment=[s]{/*}{*/},
  morecomment=[l]//,
  morecomment=[s]{/**}{*/}, % JavaDoc style comments
  morestring=[b]',
  morestring=[b]"
}[keywords, comments, strings]


\lstalias[]{ES6}[ECMAScript2015]{JavaScript}

% Requires package: color.
\definecolor{mediumgray}{rgb}{0.3, 0.4, 0.4}
\definecolor{mediumblue}{rgb}{0.0, 0.0, 0.8}
\definecolor{forestgreen}{rgb}{0.13, 0.55, 0.13}
\definecolor{darkviolet}{rgb}{0.58, 0.0, 0.83}
\definecolor{royalblue}{rgb}{0.25, 0.41, 0.88}
\definecolor{crimson}{rgb}{0.86, 0.8, 0.24}

\lstdefinestyle{JSES6Base}{
  backgroundcolor=\color{white},
  basicstyle=\ttfamily,
  breakatwhitespace=false,
  breaklines=true,
  captionpos=b,
  columns=fullflexible,
  commentstyle=\color{mediumgray}\upshape,
  emph={},
  emphstyle=\color{crimson},
  extendedchars=true,  % requires inputenc
  fontadjust=true,
  frame=single,
  identifierstyle=\color{black},
  keepspaces=true,
  keywordstyle=\color{mediumblue},
  keywordstyle={[2]\color{darkviolet}},
  keywordstyle={[3]\color{royalblue}},
  numbers=left,
  numbersep=5pt,
  numberstyle=\tiny\color{black},
  rulecolor=\color{black},
  showlines=true,
  showspaces=false,
  showstringspaces=false,
  showtabs=false,
  stringstyle=\color{forestgreen},
  tabsize=2,
  title=\lstname,
  upquote=true  % requires textcomp
}

\lstdefinestyle{JavaScript}{
  language=JavaScript,
  style=JSES6Base
}
\lstdefinestyle{ES6}{
  language=ES6,
  style=JSES6Base
}

%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% TITLE PAGE %%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

\title{Storybook integration}
\author{Hajin Kim \newline (Orion Health Software Engineering Intern)}
\date{\today}


\begin{document}
\frame{\titlepage}


%%%%%%%%%%%%
% Code + texts
%%%%%%%%%%

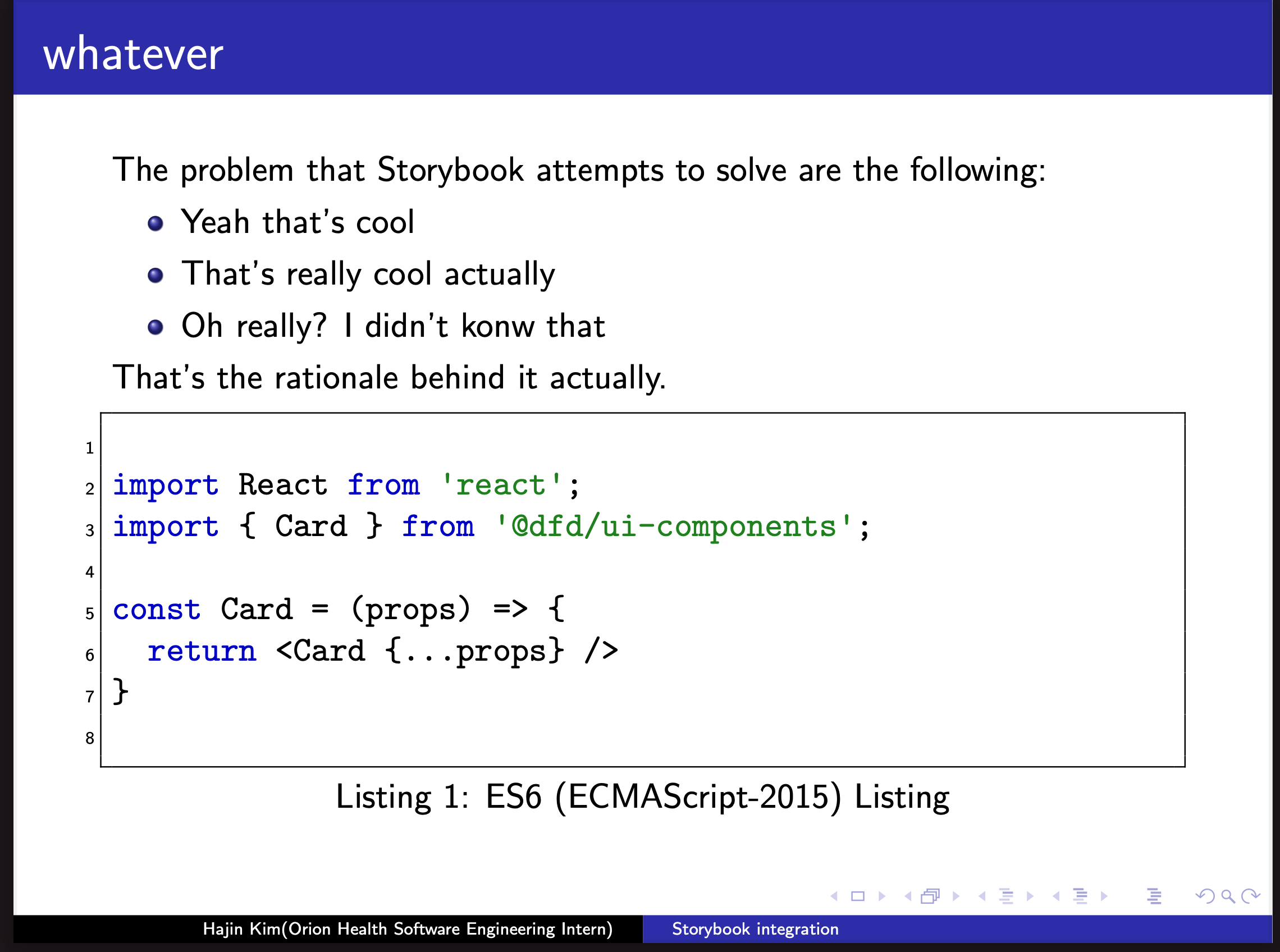

\begin{frame}[fragile]
\frametitle{whatever}
The problem that Storybook attempts to solve are the following:

\begin{itemize}
\item Yeah that's cool
\item That's really cool actually
\item Oh really? I didn't konw that
\end{itemize}

That's the rationale behind it actually.

\begin{lstlisting}[style=ES6, caption={ES6 (ECMAScript-2015) Listing}]

import React from 'react';
import { Card } from '@dfd/ui-components';

const Card = (props) => {
	return <Card {...props} />
}

\end{lstlisting}


\end{frame}


%%%%%%%%%%%%%%%%
% Just code
%%%%%%%%%%%%%

\begin{lstlisting}[style=ES6, caption={ES6 (ECMAScript-2015) Listing}]
/* eslint-env es6 */
/* eslint-disable no-unused-vars */

import Axios from 'axios'
import { BASE_URL } from './utils/api'
import { getAPIToken } from './utils/helpers'

export default class User {
  constructor () {
    this.id = null
    this.username = null
    this.email = ''
    this.isActive = false
    this.lastLogin = ''  // ISO 8601 formatted timestamp.
    this.lastPWChange = ''  // ISO 8601 formatted timestamp.
  }
}

const getUserProfile = async (id) => {
  let user = new User()
  await Axios.get(
    `${BASE_URL}/users/${id}`,
    {
      headers: {
        'Authorization': `Token ${getAPIToken()}`,
      }
    }
  ).then{response => {
    // ...
  }).catch(error => {
    // ...
  })
}
\end{lstlisting}

\end{document}
