Introduction to Java Servlets

Web server contains a servlet container (Tomcat)
Servlet container (Tomcat) contains Servlet (Your implementation of HttpServlet that processes HTTP methods)

HTTP methods include POST, GET, DELETE, PUT



Here is what we wish to achieve using Java Servlets:

- Make a custom servlet that processes HTTP methods at certain url



More familarly, we want to make sure that if we send a GET request to localhost:8080/hello endpoint, we get something in response.



Here are things we need to do:

1. Create servlet that defines HTTP methods

2. map servlet to url endpoint



Create servlet that defines HTTP methods

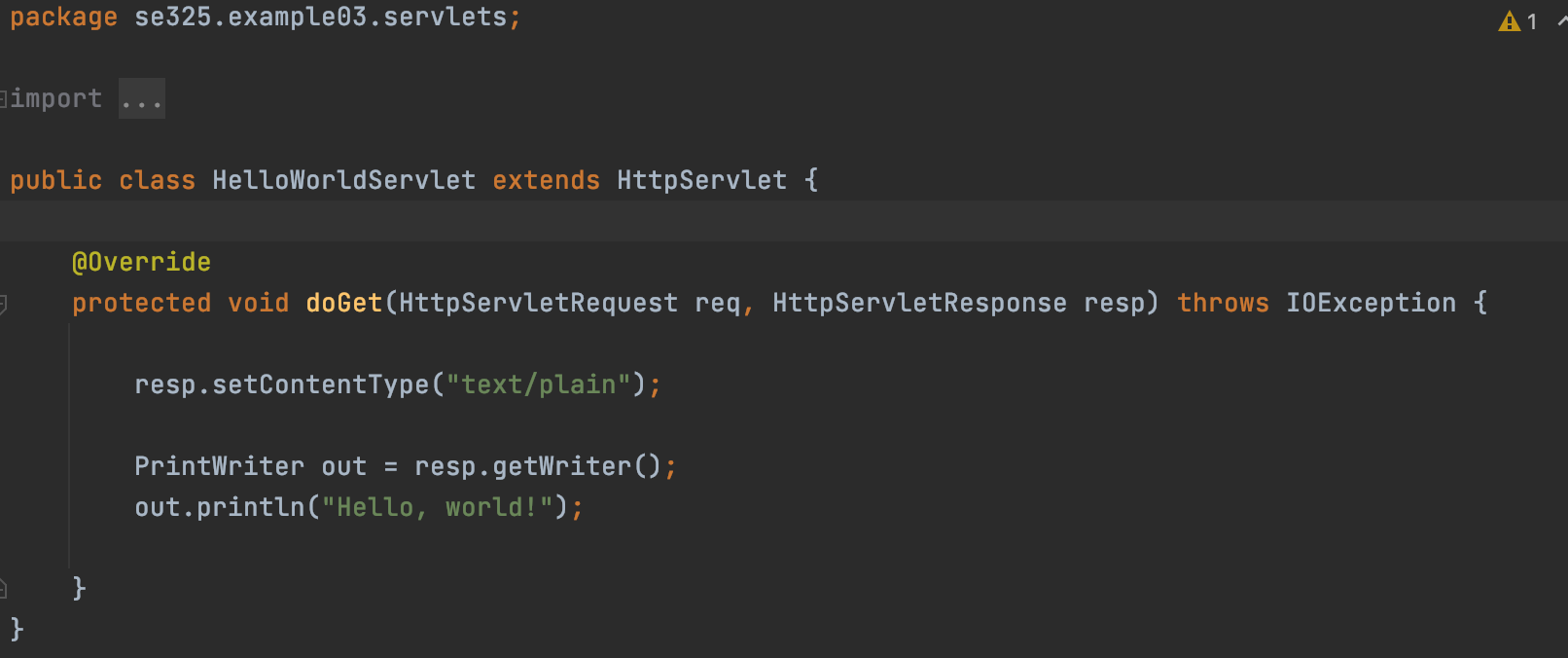

Here's what servlet looks like:

You can override any HTTP methods from HttpServlet.

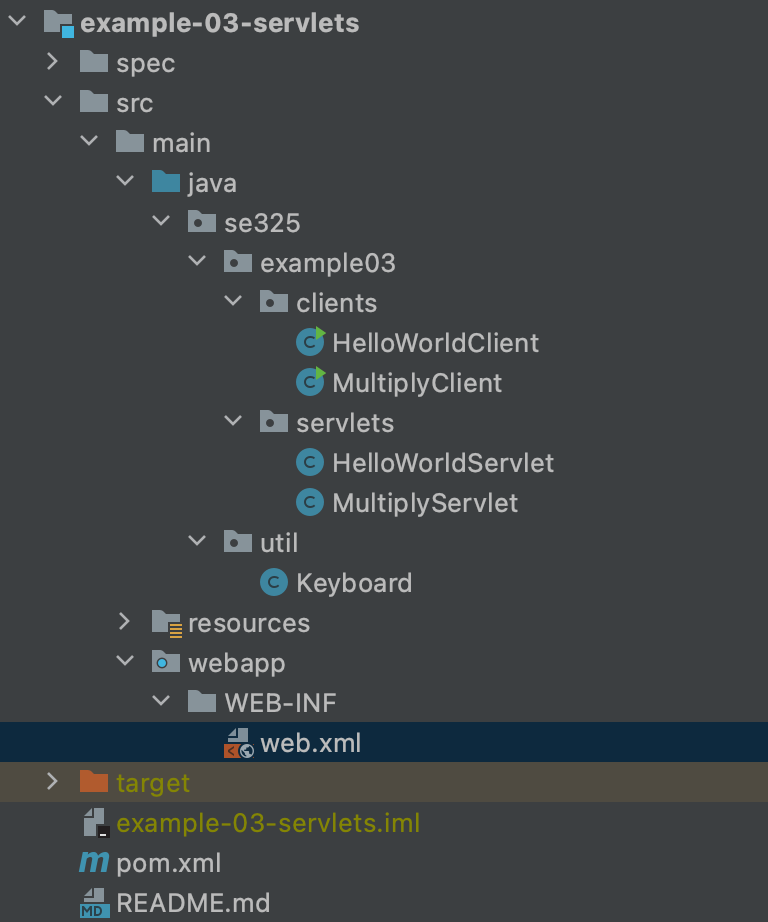

Now, there's a file called web.xml. I won't really go into the details here, but if you initialised the project to be a web app, you will have it in the directory shown here:

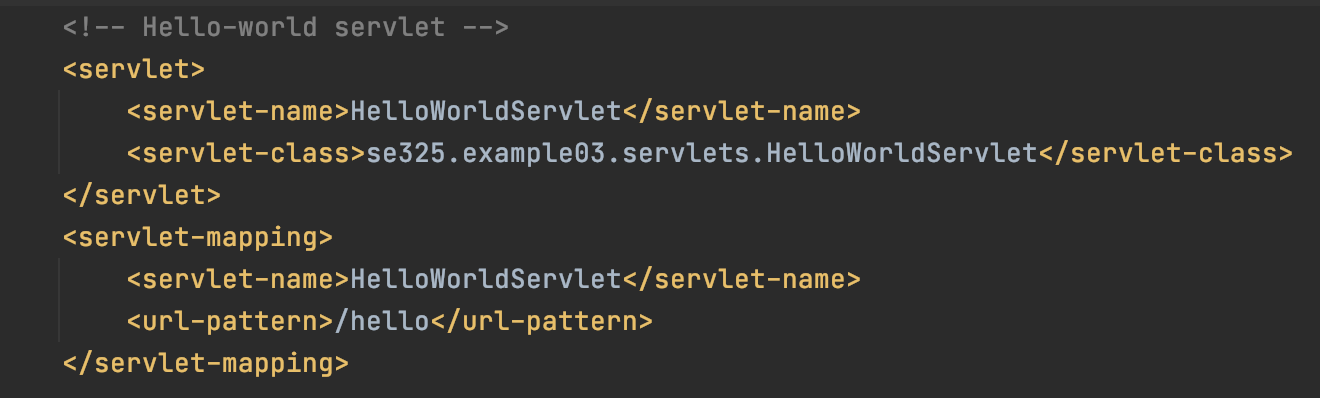

This is all you need to add to map the servlet to /hello endpoint:

Web.xml

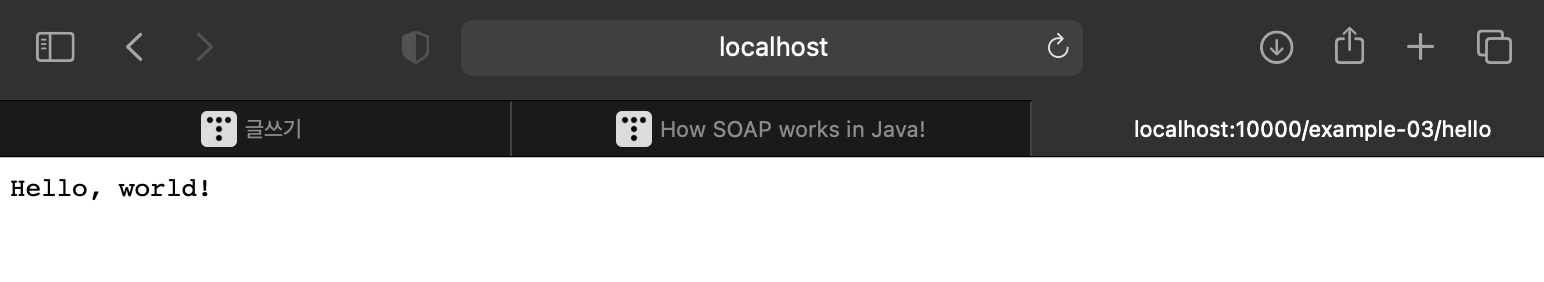

That's it! If you run this with Tomcat, and access http://localhost:10000/example-03/hello on the browser (which sends GET request to that endpoint)

You get a response!

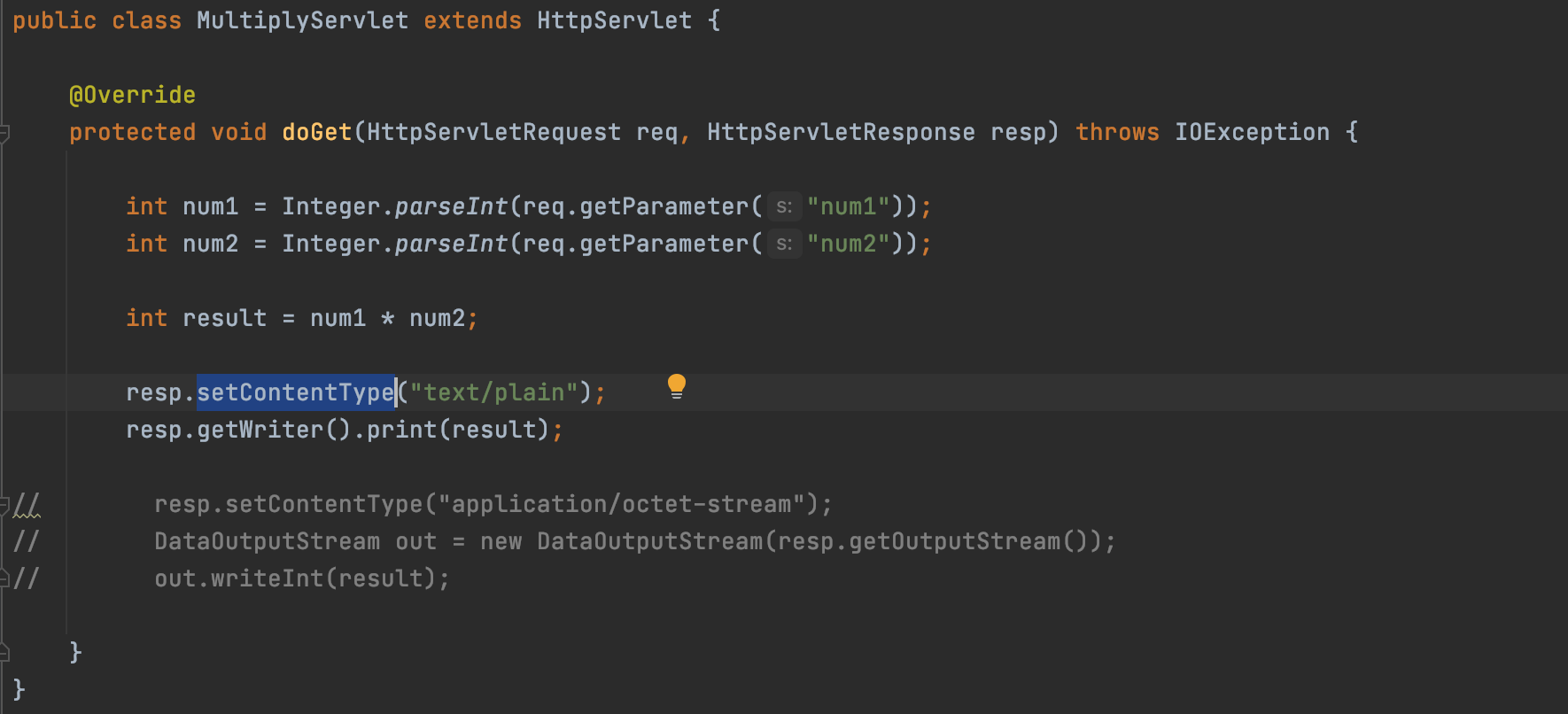

You can make a little bit more extension by adding more parameters:

And if you map it to /basicMultiply, for example, then if you access this url from browser:

http://localhost:10000/example-03/basicMultiply?num1=200&num2=300

Did you know that 200*300=60000?

This is what gets returned as a result.
